Communication using CC2500
This is a platform created for communication, between two stations, the application is used in remote sensing, eg. in environments where a high temperature is to be maintained.

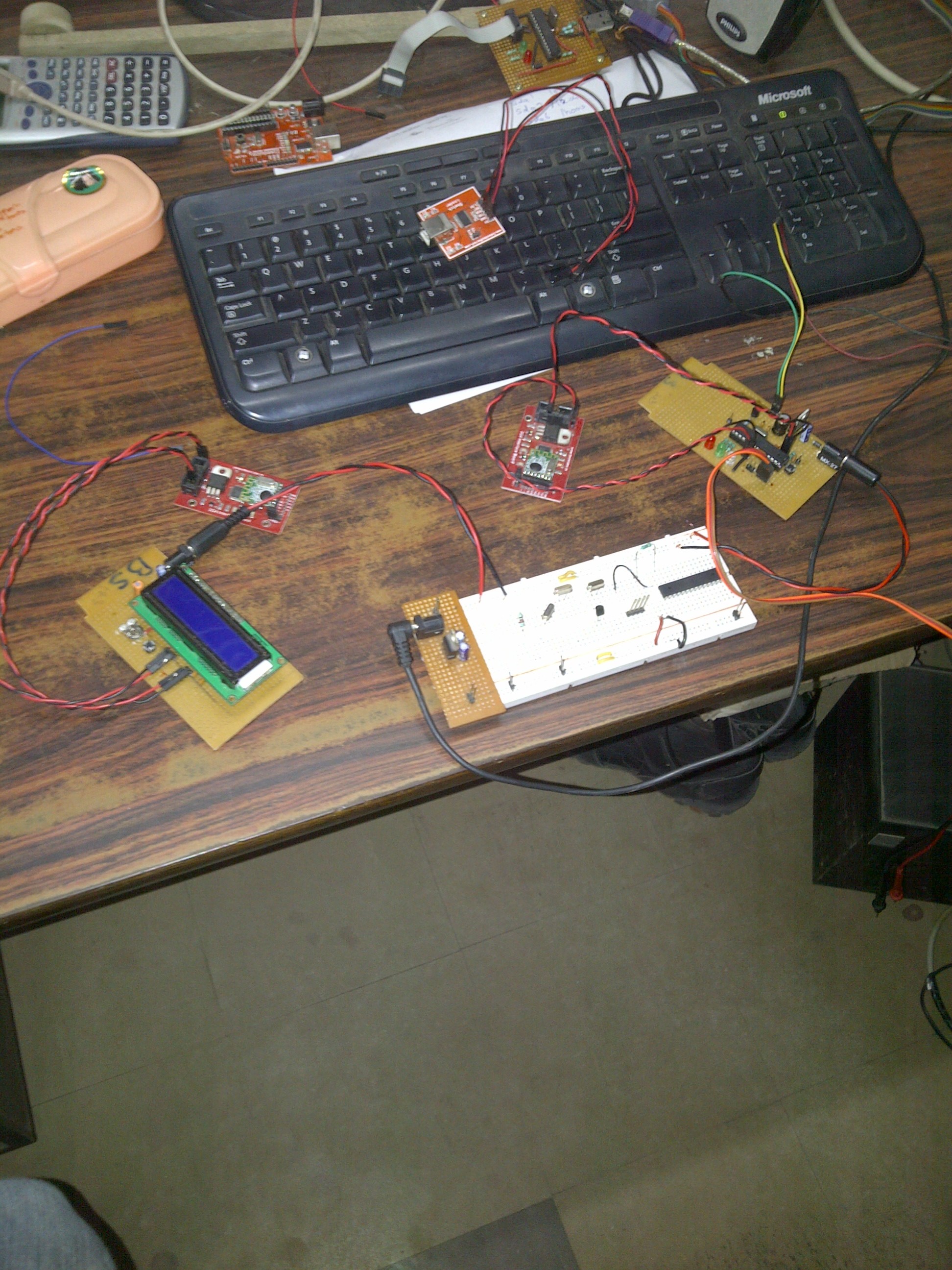

One is the base station, and the other is the remote station. The remote station has a temperature sensor, and it also controls the fan, that expels the heat out, there by maintaining the temperature, the temperature in degree Celsius is send to base station via a wireless link(2.4GHz), and is displayed on the LCD screen.
The bread is only used for connecting 5v and gnd.
