Bus Pirate Reference

Reference for using bus pirate

Well the best place to use the bus pirate is its awesome wiki, here I’ve listed the thing I use often and keep the command at my finger tips, but once you get familiar, it really fun to use!

I’ll keep updating this page as I get the opportunity to explore its various features.

Run servo

Connect servo control to AUX pin

Generate PWM

PWM is generated on AUX pin``` m

  1. HiZ
  2. 1-WIRE
  3. UART
  4. I2C
  5. SPI
  6. 2WIRE
  7. 3WIRE
  8. LCD x. exit(without change)

(1)>2 Ready 1-WIRE>W POWER SUPPLIES ON 1-WIRE>g 1KHz-4,000KHz PWM Frequency in KHz (50)>1 Duty cycle in % (50)>6 PWM active 1-WIRE>g PWM disabled I laser cut a case for it.

\[caption id="attachment\_1049" align="alignnone" width="300"\]

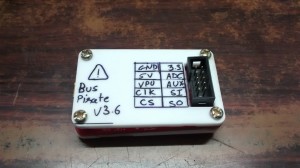

I wish I’d marked pinout on machine I wish I’d marked pinout on machine

\[/caption\]\[caption id="attachment\_1048" align="alignnone" width="300"\]

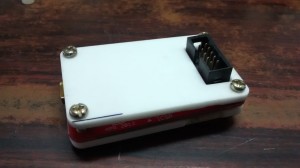

Fits like a glove Fits like a glove

\[/caption\]
